Parking Everywhere With Parktron

IPLG2000 Parking Guidance System

Guide driver to find the available parking spot easily, with camera detector to send the parking location to backend server, for assisting driver to find their car at Kiosk or mobile phone conveniently.

IPLG2000 Parking Guidance System

Product description

IPLG2000 Parking Guidance System



With LED information panels to provide driving direction guidance started right from the entrance, and plus a lamp indicator on top of every parking space for a clear visual of overall vacant status even from a far distance, IPLG2000 Parking Guidance System help guiding drivers to find a free space with no extra turns or driving around!

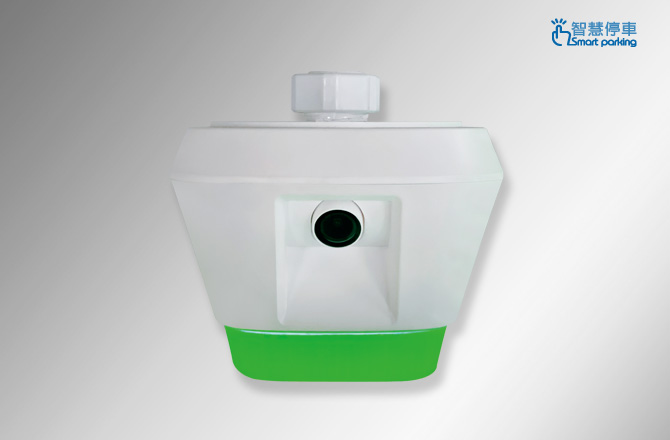

The video detector installed on top of every parking space has an video camera and a LED lamp indicator combined in one device unit. It continuously checks the vacant status of a parking space and provides the information to a zone controller, and controls its LED lamp indicator. The LED lamp indicator has two colors – standard red/green (as red indicates “occupied” and green indicates “vacant”) or optional red/blue (as blue indicates “reserved/handicap”).



A network controller is allowed to connect and collect data from up to 12 video detectors. The vacant information will be showed at LED display according to the connected network controller. And the network controller will be connecting to central IPLG2000 server.



An optional floor space counting system can be easily integrated and installed. Simply connect a loop detector controller to the central control unit, the central control unit will control the LED floor counting displays according to the signals from the loop detector respectively. A loop detector controller has 8 signal contact points.



The IPLG2000 parking guidance software provides a full graphic interface for managing the parking guidance system and monitoring the entire parking facility remotely. Software tool for updating the layout drawing of the parking facility is included for customers’ most convenience.

System flow chart





Benefits


Reducing traffic for finding a parking space means:

  • Less air pollution in the parking facility.
  • Safer environment for people walking and driving in the parking facility.
  • Trouble and time saving for drivers.
  • Increase revenue - Faster turnaround and better utilization of each parking space results more income!
  • Reduce operation cost – No more manual floor counting and less supervision required gives a dramatic time and labor saving on management operation.
  • Minimize maintenance cost – Self-diagnostics and plug & play repair to minimize system maintenance.

Product specifications

Software and server station

IPLG2000 software provides a management interface allows the operator to monitor and remotely control the entire parking guidance system.

  • Server station hardware specification: (suggested to purchase locally)
  • Processor (CPU): Intel i7 or above.
  • Memory: 8GB RAM or above.
  • Storage: 500GB Hard drive or above.
  • Operating System: Windows 10
  • Optical Drive:  DVD+-RW Dual Layer DVD / CD Drives.
  • Interface: Gigabit Ethernet Network ports, at least 4 USB2.0 ports and 1 Audio out.
  • Display:19" color TFT LCD or above.
  • Software application interface:

- A program menu allows easy access to all function pages.

- To remotely manage, and monitor the guidance system via a graphic interface of the entire parking facility layout.





Video detector-1

The video detector combines video detector and LED lamp indicator into one device.
Each parking space requires one video detector installed on top and at the center of the parking space.
The LED lamp indicator has two colors – standard red/green as red indicates “occupied” and green indicates “vacant”.





  • Dimension: 140mm(W) x 140 mm(L) x 65mm(H)
  • Work Temperature: -20~+60℃
  • Current rating: 200mA+17mA(LED lamp indicator)
  • LED lamp color: Red/Green
  • Voltage rating: DC 12V
  • Resolution:2304*1296
  • Capture : 3 million pixels,detect 3 parking
  • Detect range: 0.1~3.5m
  • Communication Interface: RJ-45 (TCP /IP)





Video detector-2

The video detector combines video detector and LED lamp indicator into one device.

Each parking space requires one video detector installed on top and at the center of the parking space.

The LED lamp indicator has two colors – standard red/green as red indicates “occupied” and green indicates “vacant”.









  • Dimension: 170mm(W) x 158 mm(L) x 60mm(H)
  • Work Temperature: -20~+60℃
  • Current rating: 350mA+17mA(LED lamp indicator)
  • LED lamp color: Red/Green
  • Voltage rating: DC 12V
  • Resolution:2592*1520
  • Capture : 4million pixels,detect 6 parking
  • Detect range: 0.1~3.5m
  • Communication Interface: RJ-45 (TCP /IP)





 LED information panel
Three digits to show available parking spaces and an arrow for direction.
There are indoor and outdoor types to select for a LED information panel according to installed location. LED information panels are normally installed at entrances or intersections of a parking facility to provide guidance information to drivers.





  • Dot Matrix: 64 x 24
  • Luminance: 500 cd/m2
  • Panel size: 48cm(W) x 18cm(L)
  • Work Temperature: -20~+80℃
  • Rate Voltage: AC 110~220V





Network Controller
One network controller max connect 12 video detector (36 parking spaces can be detected by one camera type)
It gathers and forwards vacancy information from all the detectors to the Central Control Unit, and also forwards commands from the Central Control Unit to the LED information panels connected to it for displaying proper vacant information.





  • Dimensions: 330cm(W) x 416mm(L) x 70mm(H)
  • Work temperature:-20 ~ +60℃
  • Rate Voltage: DC 14V
  • Input Voltage:  110V~220VAC
  • Communication: RJ-45 (TCP/IP )
