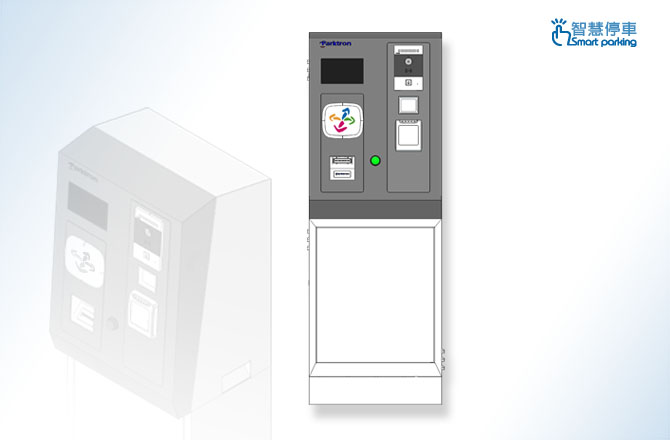

IENT219C Entry Terminal

IENT219C is an Entry Terminal used in IPS2000 parking system. It supports Mifare® IC card as parking tickets and provides a fast and easy entrance control of any parking facility.

IENT219C Entry Terminal

Product description







IENT219C is an Entry Terminal used in IPS2000 parking system. It supports Mifare® IC card as parking tickets and provides a fast and easy entrance control of any parking facility. In case of network disconnection, IENT219C can still operate under stand-alone mode; off-line data will be saved and then sent back to Central Management Server when network is reconnected.

7” color display and a multimedia speaker provide IENT219C with a user-friendly interface. When a vehicle is detected at an Entry Terminal, the driver is prompted via both a display and a voice prompt to press a ticket button for a Mifare® IC card. The ticket number, time of entry, terminal ID and location ID are all stored into the Mifare® IC card. After the card is taken by the driver, the gate will be opened for entry.

For those cards dispensed but not taken by the driver, they are recycled and blacklisted.

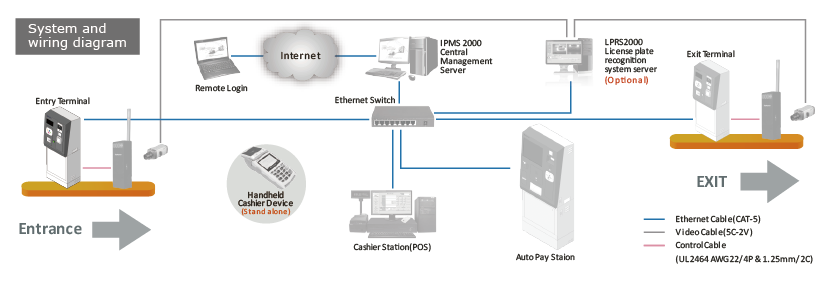

System flow chart

Product specifications

  • Motorized Mifare® IC card reader/writer/dispenser/collector:

- Contactless read/write mechanism.
- Ticket capacity: 350 tickets.

  • Embedded Linux system control board.
  • Isolated digital I/O control board.
  • 7" color TFT-LCD display.
  • Screen saver design, prolong LCD's life cycle.
  • Multimedia speaker.
  • Sub-intercom device.
  • Cabinet:

- 2.0mm thickness heavy duty hot-rolled steel.
- Polyester powder coating.
- Ventilation system coordinated by thermostat.
- Internal service illumination. Energy saving design, activate only when cabinet door(s) open.

  • Alarm monitoring and control:

- Real time alarm monitoring and alert to the Central Management Server.

- Alarm types: cabinet intrusion/collision, ticket low/empty, device/communication errors ...etc.

- Back-out and stolen tickets information are sent to Central Management Server as blacklist.

  • Working Temperature : -10 ~50°C.
  • Electrical : 100/220VAC, 0.8/0.4A, 50/60Hz.
  • Power: 60W.
  • Weight: 97kgs (±3%).
  • Dimensions (W x D x H) : 500mm x 500mm x 1300mm (±3%).



Options

  • Mifare® card reader (wall mount type) for season card (subscriber) system.
  • Secondary card dispenser for a dual card dispensing system of a total of 700 tickets capacity.
  • SUS430 stainless steel cabinet base to extend service life.
  • Customized cabinet material and color.
